MDSPACK is a software developed by MOR Digital Systems. It gathers routines to identify, simplify and analyse dynamical systems. The library is specifically built to deal with complex - e.g. large or infinite dimensional - dynamical models. It heavily relies on approximation theory at its core.
More specifically, the library provides routines to address the following problems:
In addition, the library contains numerous utilities related to the manipulation, signal processing, transformation and visualisation of dynamical systems. These latter simplify the overall manipulation of dynamical models and data.
MDSPACK is edited by MOR Digital Systems and is distributed according to different licenses:
You will be given a file
mds.lic corresponding to
your license. It must be installed on
your computer to activate the library.
To do so, refer to license
installation section below.
Store the license file
mds.lic in a chosen
directory which absolute path is denoted
<LIC_DIR> in the
sequel. It is made available to MDSPACK
through an environment variable
MDSHOME that needs to be
defined. Refer to the section below to
do so depending on your system.
MDSHOME, and its value,
<LIC_DIR>To check that the environment
variable is properly set up, you can
display its value through the command
echo %MDSHOME% in a
terminal. This should display
<LIC_DIR>.
With some text editor, open the
(hidden) files ~/.bashrc
and ~/.profile (or
~/.bashrc_profile if it
exists instead) for Linux and
~/.zprofile for MacOS and
add the following line to the end of
these files:
export MDSHOME="<LIC_DIR>"To check that the environment
variable is properly set up, you can
display its value through the command
echo $MDSHOME in a
terminal. This should display
<LIC_DIR>.
MDSPACK is available for Windows,
Linux and MacOS (x86_64
architecture). It is distributed as an
archive containing the library and its
interfaces.
This section details the installation of the library in the system. To be usable, the license file must be installed following the instructions in the previous license installation section.
First, extract the archive on a
chosen directory on your computer (not
necessarily the same as the license
file) which absolute path is denoted
<MDSPATH> in the
sequel. Installation of required
dependencies then vary between system.
Installation instructions are detailed
below for each system.
MDSPACK library and corresponding binaries must be added to the Windows search path. To do so:
Path
in “user variables” section<MDSPATH>\binMDSPACK library can then be tested by
calling mdspack --test from
a terminal.
The required dependencies are
available in most package management
systems. In Debian derived
distributions, the required elements are
available through the package
libgfortran-10-dev and its
dependencies and can be installed as
follows,
$ sudo apt-get update
$ sudo apt-get install libgfortran-10-devThe MDSPACK library can then be added
to the system libraries, e.g. in
/usr/local/lib via a
symbolink link,
# Create symbolic link towards library
$ sudo ln -s <MDSPATH>/bin/libmdspack.so /usr/local/lib/libmdspack.so
# Update the cache of available libraries
$ sudo ldconfigSimilarly, a link towards the binary
mdspack may be added to
/usr/local/bin,
# Create symbolic link towards binary
$ sudo ln -s <MDSPATH>/bin/mdspack /usr/local/bin/mdspackMDSPACK library can then be tested by
calling mdspack --test from
a terminal.
The system embeds most required
dependencies excepted from
libgfortran. The latter can
be installed in a number of ways
following the guide on the GCC
wiki.
For instance, through Homebrew, simply type
$ brew install gccThe MDSPACK library can then be added
to the system libraries, e.g. in
/usr/local/lib via a
symbolink link,
# Create symbolic link towards library
$ sudo ln -s <MDSPATH>/bin/libmdspack.dylib /usr/local/lib/libmdspack.dylibSimilarly, a link towards the binary
mdspack may be added to
/usr/local/bin,
# Create symbolic link towards binary
$ sudo ln -s <MDSPATH>/bin/mdspack /usr/local/bin/mdspackAfter rebooting, MDSPACK library can
be tested by calling
mdspack --test from a
terminal.
Apple Sillicon
processors. If your MacOS has
an arm architecture (type
of processor can be found in the about
windows), you may use the library
through Rosetta 2.
Once MDSPACK is set up properly, its features can then be accessed through its MATLAB interface.
You may contact us at contact@mordigitalsystems.fr.
MDSPACK has been developed by Charles Poussot-Vassal and Pierre Vuillemin. See this page for further information.
It relies on additional third-party open-source libraries which are listed in appendix.
This document is available both in HTML and PDF format from MOR Digital Systems website. It gathers the information associated with the MDSPACK software.
The list of acronyms used in this document are listed below,
| Acronym | Signification |
|---|---|
| LTI | Linear Time Invariant |
| SISO | Single Input Single Output |
| MISO | Multiple Input Single Output |
| SIMO | Single Input Multiple Output |
| MIMO | Multiple Input Multiple Output |
| SVD | Singular Value Decomposition |
In addition, mathematical notations are listed in the table below
| Notation | Signification |
|---|---|
| \(n,n_x\) | number of internal variables of a dynamical model |
| \(n_u\) | number of inputs of a dynamical model |
| \(n_y\) | number of outputs of a dynamical model |
| \(n_t\) | number of time samples |
| \(s\) | Complex Laplace variable |
| \(t\) | Real time-domain variable |
| \(p\) | Real parametric variable |
The MATLAB interface is provided as a
package +mdspack located in
the directory
<MDSPATH>/API/matlab.
Dependencies. This interface requires MATLAB (>=R2016b) and uses objects (such as state-space) available in the Control System Toolbox. In addition, some functions are meant to return objects from the Robust Control System Toolbox. This is specified in the associated function documentation.
Installation. Once
MDSPACK library is installed (as
detailed in the dedicated
section), you need to add
<MDSPATH> and its
subdirectories to the MATLAB path. This
may be done by adding the following
lines to your startup.m
file:
% Path towards MDSPACK
addpath <MDSPATH>/bin
addpath <MDSPATH>/API/matlab/Whether the package is functional can
then be evaluated by calling
mdspack.test_api() from the
MATLAB command window. This routine
launches a set of tests and informs the
user if the API is fully functional.
Content of the
package. The functions
available within +mdspack
are sorted by category:
Identification techniques are classified here depending on the nature of data they are handling:
Interface to the MIMO LTI frequency-domain Loewner interpolation method. It is used as follows,
[Hr, info] = mdspack.loewner(w, H, [opt])where the input data are:
w: a real \(n_w\)
vector containing strictly positive
frequencies.H: a complex \(n_y \times n_u
\times n_w\) matrix containing
the frequency responses to be
matched.opt (optional): a
structure describing the options of the
method.and the outputs are:
Hr: a descriptor model
interpolating tangentially the input
data.
info: a structure
giving information about the
interpolation process.target: scalar
associated with the dimension objective,
being the order along the \(s\)
variables. Default is inf.
Note that if a lower order is possible,
the algorithm will use it instead.freq_band: a 2
dimensional real vector describing the
frequency interval of interest. Values
of w outside this interval
are discarded. Default value is
[0,inf].normalise: a boolean to
activate the normalisation of the
frequency response data H.
Normalisation is useful in MIMO cases to
improve the look-alike between the data
and the interpolating model when
different input-output have very
different magnitudes. Default value is
false.ls_fit: a boolean to
activate a posteriori least-square
matching of the data. This should
improve the matching in MIMO case.
Default is true.stable: a boolean to
activate the projection of the
interpolating model onto a stable
subspace. Default value is
false.check_rank: a boolean
to activate the computation of the rank
condition associated with the Loewner
framework. This may be useful for
debugging purpose when the algorithm
fails but the condition can be very
restrictive. Default value is
false.status: integer
indicating the status of the algorithm
0: no error1: rank condition not
satisfiedierr: relative
interpolation error between the model
Hr and the input data
H, computed as\[ \sqrt{ \frac{1}{n_w} \sum_{i=1}^{n_w} \Vert H_i - H_r(j\omega_i) \Vert_F^2} / \sqrt{ \frac{1}{n_w} \sum_{i=1}^{n_w} \Vert H_i \Vert_F^2} \]
This example shows how some
(supposedly unknown) test model
G may be recovered from its
frequency response.
% Test model G
G = tf(1,[1/100, 0.2/10, 1]);
% Associated frequency domain samples
w = logspace(-2,2,10);
Gjw = freqresp(G,w);
% Interpolation with Loewner
[Hr, info] = mdspack.loewner(w, Gjw);
% Comparison with initial model

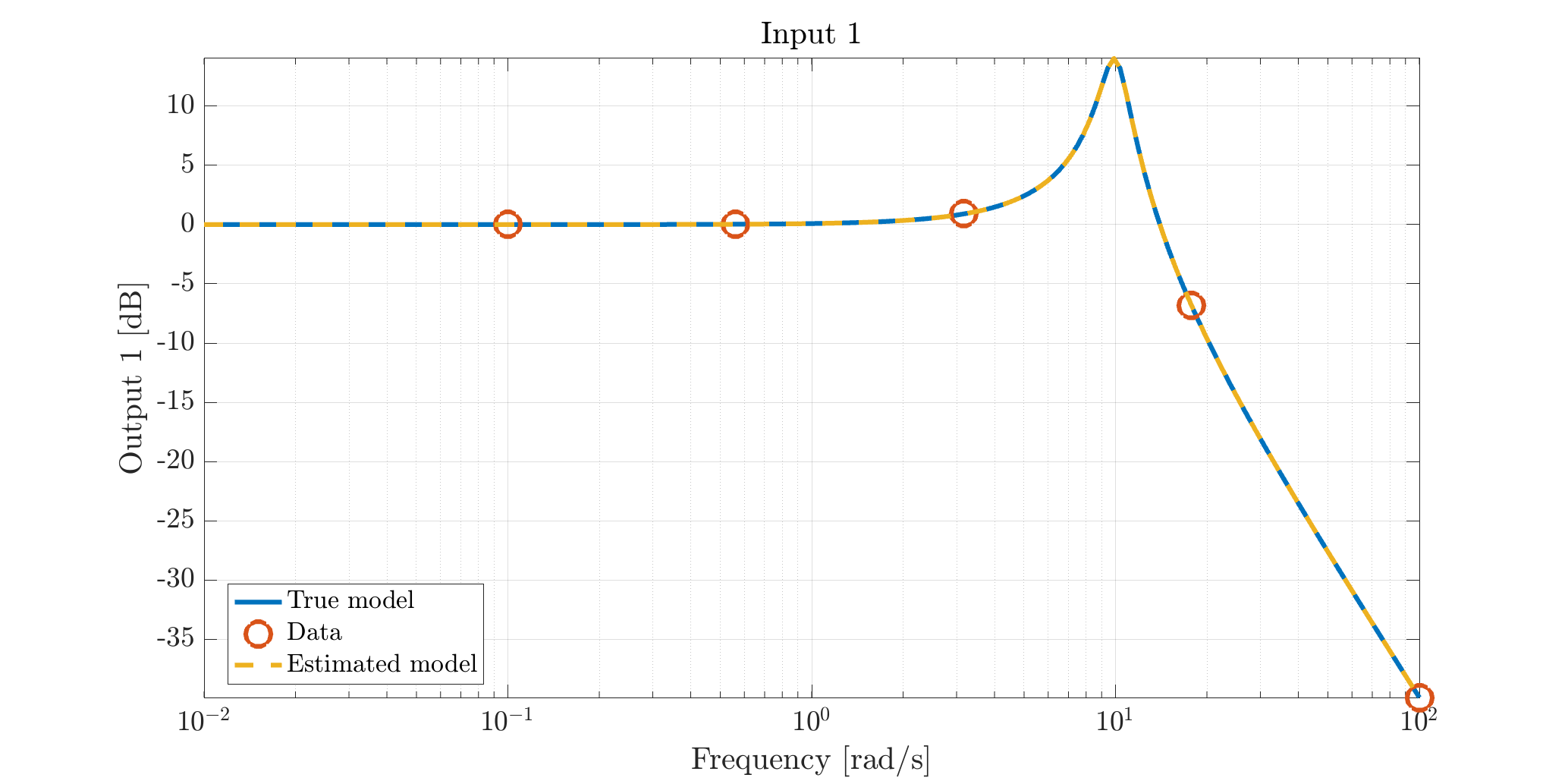

norm(G - Hr,2)Proposed in [1], the Loewner framework enables to find a descriptor realisation \(H_r(s) = C_r (sE_r - A_r)^{-1} B_r\) that interpolates tangentially some given frequency-domain data, i.e. \[ w_i = H_r( \lambda_i) r_i \quad v_j^T = l_j^T H_r(\mu_j), \] with \(\lambda_i, \mu_j \in \mathbb{C}\), \(w_i, l_j \in \mathbb{C}^{n_y}\), \(v_j, r_i \in \mathbb{C}^{n_u}\). Under some rank conditions, the realisation is minimal.
Interface to the parametric MIMO LTI frequency-domain Loewner interpolation method (routine extending mdspack.loewner by performing interpolation along both \(s\) and \(p\)). It is used as follows,
[Hr, info] = mdspack.ploewner(s, p, H, [opt])where the input data are:
s: a complex \(n_s\)
vector containing the complex
(frequency) points used when computing
parametric response H.
Generally, s contains
frequencies and is thus composed of pure
complex values, but any real/complex
number may be used. Note that
s should at least contain
one single complex value.p: a real \(n_p\)
vector containing the real (parametric)
points used when computing parametric
response H.H: a complex \(n_y \times n_u
\times n_s \times n_p\) matrix
containing the responses to be matched.
More specifically, each
{s,p} combination leads to
a \(n_y\)
outputs and \(n_u\)
inputs matrix.opt (optional): a
structure describing the options of the
method.and the outputs are:
Hr: set of matrices
describing a parametric descriptor
state-space model, interpolating the
data H along \(s\) and
\(p\).
Hr is the required argument
for mdspack.usubs
routine to generate a descriptor
dss model evaluated at a
frozen parametric value, or for mdspack.dssu2uss
routine to generate an uncertain
uss model.info: a structure
providing informations about the
interpolation process.target: \(1 \times
2\) positive integer vector
associated with the dimensions
objectives. In the two parameters case,
user may chose both orders along the
\(s\)
and \(p\)
variables. The first element is the
order along the \(s\)
parameter, and the second along the
\(p\)
one. Default value is
[inf,inf].real: a boolean to
enforce the constructed realisation to
be real-valued. Default value is
false. Note that if set to
true, then s
must be organised as follows: (at least)
the first element s_r must
be real and the rest complex conjugated,
as follows:
[s_r, s_1, conj(s_1), s_2, conj(s_2), ...].verbose: boolean used
to plot informations during the model
construction. It plots (i) the SVD drop
used to detect the degrees both in \(s\) and
\(p\),
(ii) the Loewner kernel computation
error. Default value is
false. The singular values
drop is a good indicator of a rational
approximation order to be used in the
optional field target.status: integer
indicating the status of the algorithm
0: no error1: method not available
(e.g. for more than one single
p parameter)2: possible inaccurate
matching due to kernel inacurate
computation
LL2: 2D Loewner matrix
\(\mathbb
L_2\), in complex form.c: 2D Loewner matrix
kernel, such that \(\mathbb L_2
c=0\).ker_err: kernel
solution error \(||\mathbb L_2
c||_2\).order: rational orders
along \(s\) and
\(p\).
Note that in general, a real-valued
model is sought and the optional field
real should be set to
true. In this case the
s vector must be organised
as follows: at least the first element
s_r must be real while the
rest s_i
(i=1,...,n) may be complex
conjugated, as follows:
[s_r, s_1, conj(s_1), s_2, conj(s_2), ...,conj(s_1), s_n, conj(s_n)].
The obtained model Hr is
a parametric continuous-time one. It is
described as a structure. Evaluating the
state-space at a frozen parameter value
may be done using either:
uss
model.Let sample the unknown system
G along
s,
being \(200\)
points linearly spaced between
0.1i and 100i
plus in 0.01, andp, being
\(20\)
points linearly spaced between
0.1 and
1,leading to H, a
frequency response matrix of dimension
\(2\times
1\times 201\times 20\). The
triplet {s,p,H} is referred
to as the original data. The Loewner
framework automatically finds
Hr, the rational parametric
function interpolating the original
data. The minimal rational orders along
\(s\)
and \(p\) (here
respectively 3 and 2), are automatically
recovered.
% Test model G(s,p)
G = @(s,p) [s^3*p; s]/(s^2+p*s+1);
% Complex-domain samples 's' (notice that s contains first a real value,
% then a sequence of complex conjugated ones)
w = linspace(.1,100,30);
s = [.01 sort([1i*w -1i*w])];
% Real-domain parametric samples 'p'
p = linspace(.1,1,20);
% Evaluation of H, the response of G(s,p) along 's' and 'p'
% (notice that H is a 2x1x201x20 complex-valued matrix)
H = mdspack.eval(G,s,{p});
% Evaluation of Hw, the response of G(s,p) along '1i*w' and 'p'
% (notice that H is a 2x1x100x20 complex-valued matrix, similar to a Bode response)
Hw = mdspack.eval(G,1i*w,{p});
% Interpolation with the 2-parameters Loewner
opt.target = [3 inf]; % target orders along s and p
opt.verbose = true; % show the process informations
opt.real = true; % enforce real-valued approximating model
[Hr,info] = mdspack.ploewner(s,p,H,opt);
Hr
info.orderNow the structure Hr may
be evaluated at a frozen parametric
value, by mean of mdspack.usubs
and /or mdspack.dssu2uss.
Then, one may compare the frequency
responses of the obtained model with
respect to the original data.
% Comparison with initial model on a thiner frequency grid
ww = union(w,logspace(log10(min(w)),log10(max(w)),300));
for ii = 1:numel(p)
% Construct dss model, being the evaluation of Hr at p(ii)
Hr_p = mdspack.usubs(Hr,p(ii));
% Plot the Bode gain and phase diagram
figure(10), hold on
mdspack.bodemag(Hw(:,:,:,ii),w,'.','Color','k')
mdspack.bodemag(Hr_p,ww,'-')
figure(20), hold on
mdspack.bodephase(Hw(:,:,:,ii),w,'.','Color','k')
mdspack.bodephase(Hr_p,ww,'-')
drawnow
end
% Construct a 'uss' model (in MATLAB format) if Robust Control Toolbox available
Hu = mdspack.dssu2uss(Hr,[min(p) max(p)]);Originally proposed in [2] and
updated in [3] for
the MIMO case, the parametric Loewner
framework enables to find a descriptor
realisation of the form \[
H_r(s,p) = C_r(p) (sE_r - A_r(p))^{-1}
B_r \text{ or } H_r(s,p) = C_r (sE_r -
A_r(p))^{-1} B_r(p)
\] where \[
\begin{array}{rcl}
A_r(p) &=& A+\sum_{j=1}^{n_p}
A_j p^j\\
B_r(p) &=& B+\sum_{j=1}^{n_p}
B_j p^j\\
C_r(p) &=& C+\sum_{j=1}^{n_p}
C_j p^j
\end{array}
\] that interpolates given
frequency / parametric domain data, i.e.
\[
w_{ij} = H_r( \lambda_i,\pi_j) \quad
v_{kl} = H_r(\mu_k,\nu_l),
\] where \(\lambda_i, \mu_k
\in \mathbb{C}\), \(\pi_j, \nu_l \in
\mathbb{R}\) and \(w_{ij},v_{ij} \in
\mathbb{C}^{n_y\times n_u}\).
More specifically, \(\lambda_i,
\mu_k\) are partitions of
s, \(\pi_j,
\nu_l\) are partitions of
p and \(w_{ij},v_{kl}\)
are the corresponding partitions of
H. Under some rank
conditions, the realisation is minimal,
otherwise, close to minimal.
Interface to the SISO LTI time-domain Pencil method. It is used as follows,
[Hr, info] = mdspack.pencil(Y, [U, opt])where the input data are:
Y: a real \(n_t\)
vector containing constantly sampled
time-domain output data. Y
is the measurement snapshot vector.U (optional): a real
\(n_t\)
vector containing constantly sampled
time-domain input data. U
is the input snapshot vector.opt (optional): a
structure describing the options of the
method.and the outputs are:
Hr: a sampled-time
state-space model which initial
response, or response to U
input snapshot (if provided) matches, or
approximates the measure snapshots
Y.
info: a structure
giving informations about the Pencil
method process.target: indicates the
target order / rank tolerance of the
resulting generated model. Default value
is 1e-10.
target defines a rational
approximation order.target defines
a normalised rank tolerance. In this
case, the rational approximation order
is automatically computed according to
the approximation error associated with
the normalised rank decomposition of the
Pencil matrix.dt : a sampling-time
given as a positive real. Default value
is 1.svd: employed singular
value decomposition method. Default
value is 'svd'.
'svd': full SVD.'rsvd': randomized
SVD.status: integer
indicating the status of the algorithm
0: no error1: error in the
processxr0: projected
generating model initial condition, with
the same dimension as
Hr.U is empty)
Hri: Hr
equivalent impulsive model, with same
dimension as Hr. The
Hri impulse response with
zero initial condition is equivalent to
Hr response with initial
condition xr0. Both lead to

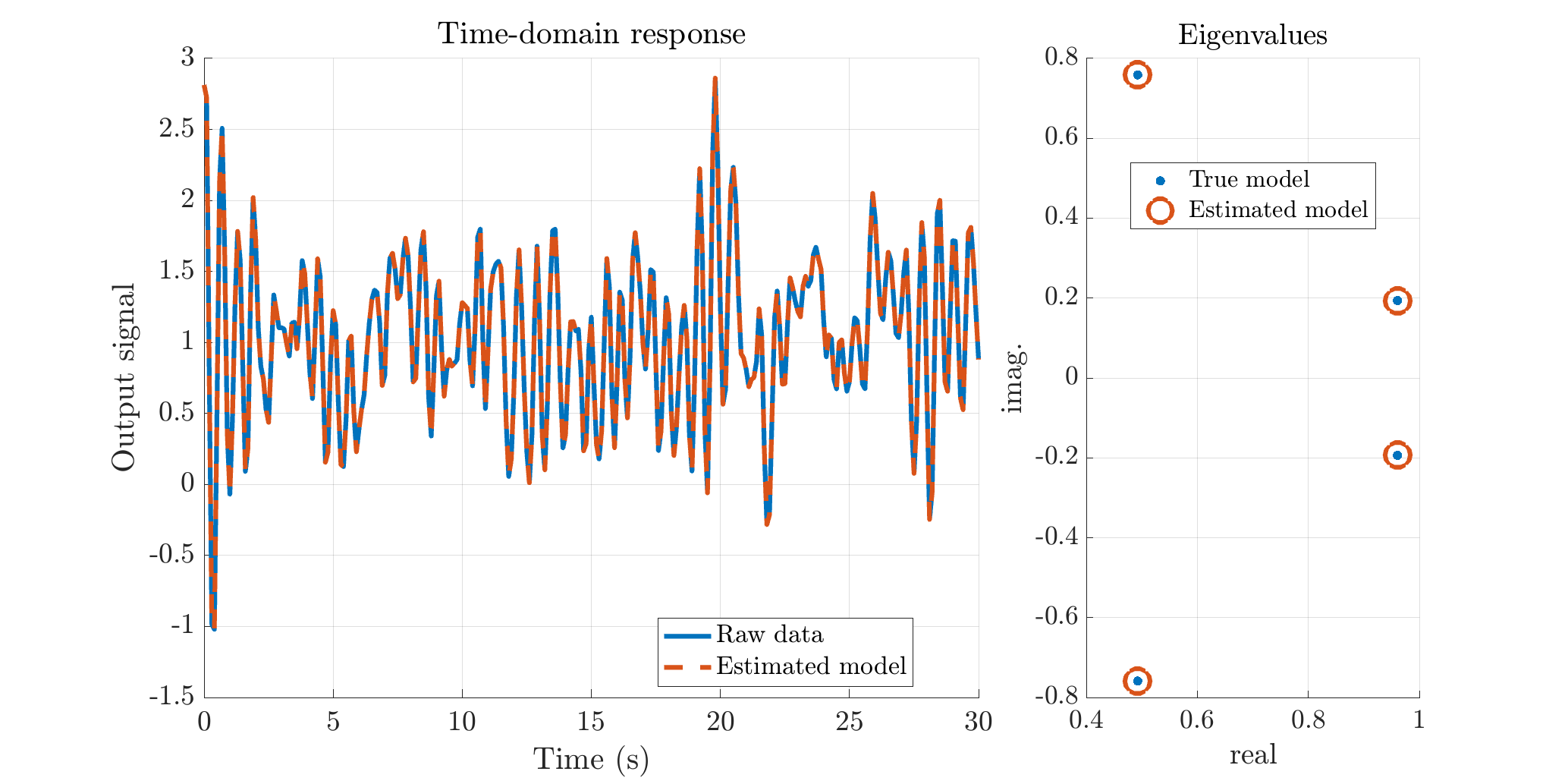

Y. c2d routine.Let us simulate the time-domain response of a fourth order linear model excited by a random input signal, with zero initial conditions. The Pencil method allows recovering the underlying sampled-time linear model producing the output sequence in response to the very same exciting signal. Interestingly, if the original model is linear, the eigenvalues are also recovered.
% Test model and simulation data
dt = .1;
t = 0:dt:20;
H = ss(tf(1,[1/100 .2/10 1]) + tf(1,[1/4 .2/2 1]));
% Simulate with random input U and null condition x0
x0 = zeros(length(H.a),1);
U = rand(1,numel(t)).*exp(-.01.*t)+1;
[Y,T,~] = lsim(H,U,t,x0);
% Pencil method
opt = struct('dt',dt,'target',4);
[Hr,info] = mdspack.pencil(Y,U,opt);
xr0 = zeros(length(Hr.a),1);
[Yr,Tr,~] = lsim(Hr,U,t,xr0);
% Display results
figure,
plot(T,Y,'o',Tr,Yr,'-')
xlabel('\textbf{Time [s]}','Interpreter','latex');
ylabel('$\mathbf{y}$','Interpreter','latex');
legend({'Data','Model'},'Interpreter','latex')
% Compare the identified eigenvalues
eig(c2d(H,dt))
eig(Hr)Similarly, if no excitation signal is fed, but a non null initial condition, the same observation can be made.
% Test model and simulation data
dt = .1;
t = 0:dt:20;
H = ss(tf(1,[1/100 .2/10 1]) + tf(1,[1/4 .2/2 1]));
% No input on the system (autonomous)
H.b = [];
H.d = [];
% Simulate with null input U and random initial condition x0
x0 = rand(length(H.a),1);
[Y,T,X] = initial(H,x0,t);
% Pencil method
opt = struct('dt',dt,'svd','svd','target',1e-6);
[Hr,info] = mdspack.pencil(Y,opt);
% Initial response
[Yr,~,~] = initial(Hr,info.xr0,t);
% Equivalent impulse model response
[Yri,Tr,Xr] = impulse(info.Hri,t);
% Display results
figure,
plot(T,Y,'o',Tr,Yr,'-',Tr,Yri,'--')
xlabel('\textbf{Time [s]}','Interpreter','latex');
ylabel('$\mathbf{y}$','Interpreter','latex');
legend({'Data','Model (initial)','Model (impulse eq.)'},'Interpreter','latex')
% Compare the identified eigenvalues
eig(c2d(H,dt))
eig(Hr)The pencil framework has been
proposed in [4]. It
enables to construct a LTI SISO system
Hr which response from an
exciting signal U (if
provided) or from an initial value (if
no input provided) leads to a
time-domain output similar to the
Y data sequence. The
procedure requires either zero initial
condition and input signal
U (not necessarily
persistently exciting) or a non zero
initial condition with no input signal.
The resulting model Hr
embeds the modal content of the
generating system and the transfer from
input to output.
Routine for model complexity reduction.
Interface to the MIMO LTI modal truncation algorithm. It is used as follows,
[Hr, info] = mdspack.modal(H, [opt])where the inputs are:
H: a (descriptor)
state-space model to be reduced.opt (optional): a
structure containing the options of the
method.And the outputs are:
Hr: a reduced-order
(descriptor) state-space model.info: a structure
containing the informations about the
reduction process.target: indicates the
target and/or order of the resulting
generated model. Default value is
0.1, for \(10\%\)
mismatch error objective.
target defines an
approximation order.target defines
a relative reduction error in terms of
(frequency-limited) \(\mathcal{H}_2\)-norm.freq_band:
frequency-band of interest. Default is
[0,inf].normalise: a boolean to
activate input/output normalisation.
Normalisation is useful in the MIMO case
to improve the look-alike with the
initial model when different i/o
channels have very different magnitudes.
Default is false.ls_fit: a boolean to
activate a posteriori residues
adjustment. Default is
true.status: integer
indicating the status of the algorithm:
0: no error.1: the model cannot be
diagonalised.2: target reduction
order cannot be reached due to the
number of un-reductible modes.r: dimension of the
reduced stable subsystem.k: number of
un-reductible poles (marginally
stable/unstable and infinite) that have
been kept.err: relative
(frequency-limited) \(\mathcal{H}_2\)-norm
of the error (excluding direct

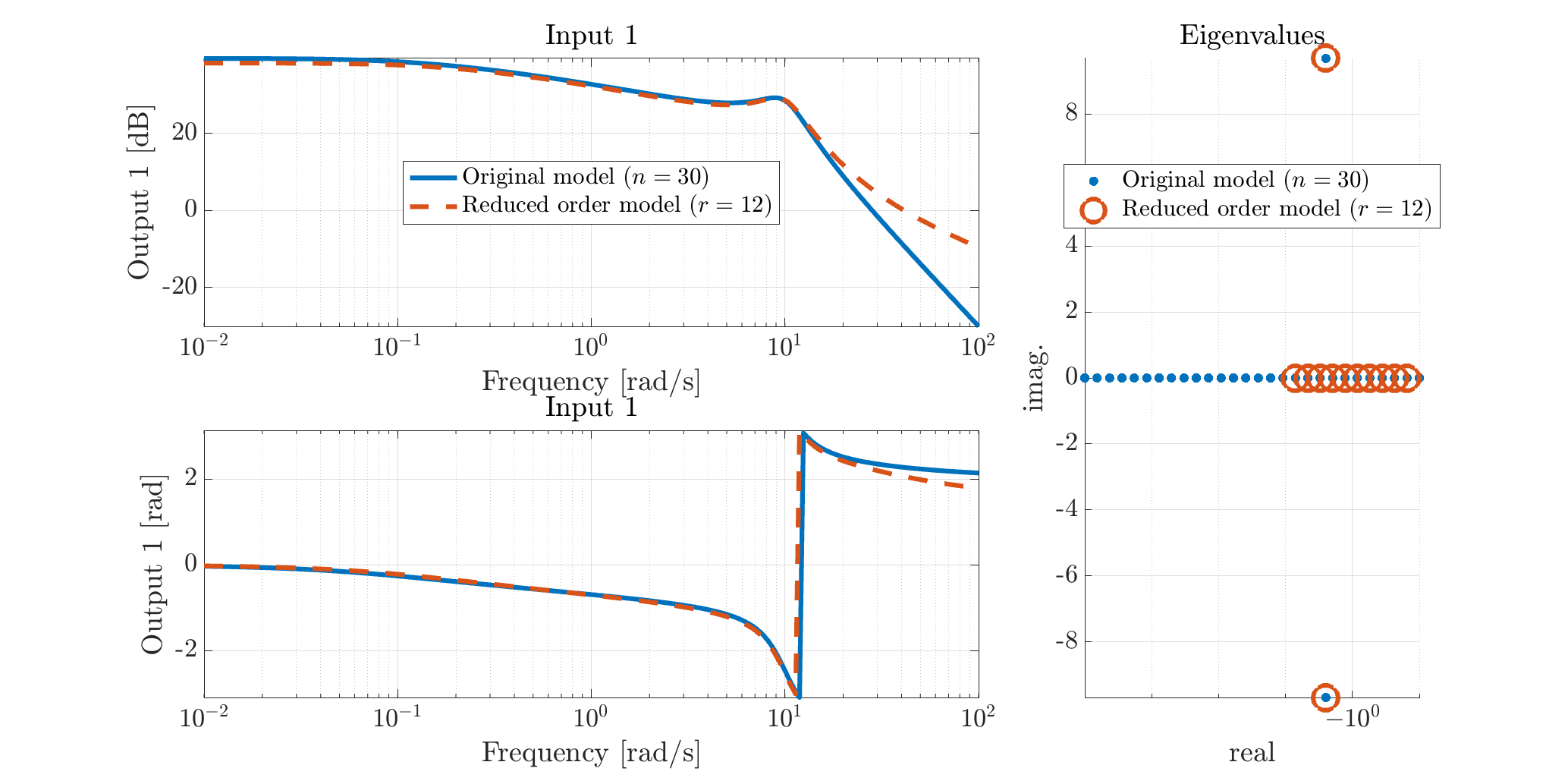

feedthrough, if any).In this example, modal truncation is applied to reduce a \(48\)-th order dynamical model. By default, the approximation order is automatically selected so that the relative approximation error falls below \(10\)%.
% Loading test model: 48-th order LAH model
load build
% Perform modal truncation
[Hr, info] = mdspack.modal(G);
% Check the resulting approximation error
[info.err , norm(G-Hr,2)/norm(G,2)]
% Plot the Bode response
w = logspace(0,2,200);
figure,
subplot(211), hold on
mdspack.bodemag(G,w,'-')
mdspack.bodemag(Hr,w,'--')
subplot(212), hold on
mdspack.bodephase(G,w,'-')
mdspack.bodephase(Hr,w,'--')
legend('Original model','Reduced order model')Set of routines for data and model analysis. First evaluation and frequency responses and then functions for norms and stability estimations.
Interface that computes the (parametric) MIMO LTI transfer function evaluation. It is used as follows,
[H, info] = mdspack.eval(G, s, [p])where the inputs are
G: a MIMO LTI model
with \(n_u\)
inputs and \(n_y\)
outputs provided in as a MATLAB
handle function and reading
as
G = @(s) ... in the
nonparametric case, one evaluates a
transfer function \(G(s)\).G = @(s,p) ... in the
parametric case, one evaluates a
transfer function \(G(s,p)\)
where \(p\) is the
parameter vector given as a real \(n_p\)
vector. It describes the dependency
along \(p(1)\),
\(p(2)\),
…s: the evaluation grid
points of the dynamical part of the
complex function, i.e. along \(s\)
parameter (complex \(n_s\)
vector).and the outputs are
H: the evaluation of
G being
info: additional
informations
ny, nu: number of
inputs and outputs (integers).combi_idx: parameters
combinations index table (dimension
\((n_{p_1}
n_{p_2} ...)\times n_p\)).p: the parametric
gridding points given as a cell of size
\(n_p\)
where p{1} is the value
vector for p(1) (real \(n_{p_1}\)
vector) p{2} is the value
vector for p(2) (real \(n_{p_2}\)
vector)…The variable s denotes
the complex point where the function is
evaluated. Usually one evaluates along
the imaginary axis for continuous-time
models and along the unit circle for
sampled-time ones. However, the function
allows evaluating at any complex
point.
Here one aims at evaluating the
transfer function \[
G(s,p_1,p_2) =
\frac{p_2^2s^4}{2s^3+3p_1^3+sp_2-1}
\] along
s=[1,...,100]i, for
p1=[2,...,5] and
p2=[1,...,5]. The code
below leads to a complex-valued
evaluation of dimension \(1\times 1\times
106\times 4\times 3\).
% Test model G(s,p1,p2)
G = @(s,p) [p(2)^2*s^4]/(2*s^3+3*p(1)^3+s*p(2)-1);
% Complex-domain samples 's'
w = linspace(1,100,106);
s = 1i*w;
% Real-domain parametric samples 'p1' and 'p2'
p1 = linspace(2,5,4);
p2 = linspace(4,5,3);
% Evaluation of H, the response of G(s,[p1 p2]) along 's' and 'p1', 'p2' (notice that H is a 1x1x106x4x3 complex-valued matrix)
[H,info] = mdspack.eval(G,s,{p1,p2});To convince, one may compare the responses using the frequency sigma plot diagram as follows.
kk = 0;
figure, hold on
for jj = 1:numel(p2)
for ii = 1:numel(p1)
kk = kk + 1;
mdspack.sigma(G(tf('s'),[p1(ii),p2(jj)]),w,'-')
mdspack.sigma(H(:,:,:,ii,jj),w,'k--')
mdspack.sigma(H(:,:,:,info.combi_idx(kk,1), ...
info.combi_idx(kk,2)),w,'r:')
drawnow
end
endInterface that computes the MIMO LTI frequency response. It is used as follows,
F = mdspack.freqresp(H, w)where the inputs are:
H: a LTI model given in
one of the following forms
ss, dss or
tf continuous or
sampled-time model.{A,B,C,D,E,dt}
continuous or sampled-time model of the
form (if dt<=0 or if
dt=[]) \[
E\dot x(t) = Ax(t) + Bu(t), y(t) = Cx(t)
+ Du(t)
\] or if dt>0,
\[
Ex(k+dt) = Ax(k) + Bu(k), y(k) = Cx(k) +
Du(k).
\]freqresp response
provided by mdspack.freqresp
or the MATLAB freqresp
routine.handle function, given
as H = @(s) ... (in
continuous time).structure with
the following fields
fun: a handle function
given as
H.fun = @(s) ...dt: the sampling time
H.dt being \(\leq 0\)
for continuous-time and \(>0\) in
the sampled-time case.w: the frequency
evaluation gridding points (real \(1 \times
n_w\) vector).And the outputs are:
F: a complex frequency
response of dimension \(n_y\times n_u
\times n_w\).plotOptions: classical
MATLAB plot function
arguments% Associated frequency-domain grid
w = logspace(-2,2,200);
% Test model
Htf = tf(1, [1/100, 0.2/10, 1]);
Hhan = mdspack.freqresp(@(s) 1/(s^2/100+0.2*s/10+1),w);
Hfreqresp = mdspack.freqresp(Htf,w);
% mdspack Bode diagram
figure, hold on
mdspack.bodemag(Htf,w,'-')
mdspack.bodemag(Hhan,w,'--')
mdspack.bodemag(Hfreqresp,w,'.','Color','b')Interface that computes the MIMO LTI norms associated with frequency-domain data. It is used as follows,
N = mdspack.fdnorm(H, [w, ntype, freq_band])where the inputs are
H: a complex \(n_y \times n_u
\times n_\omega\) matrix
containing the response of the
system.w (optional): a real
vector containing the associated
frequencies.ntype (optional): the
norm to be computed (default is
'FRO')
'L2': trapezoidal
approximation of the integral defining
the \(2\)-norm
\[
\textstyle
\sqrt{\frac{1}{2\pi}\sum_{k=1}^{n_\omega-1}
(\omega_{k+1} - \omega_k)(\Vert H_{k+1}
\Vert_F^2 +\Vert H_k \Vert_F^2)}.
\]'FRO': average sum of
squared Frobenius norms'LINF': data-driven
approximation of the \(\infty\)
norm, given by \(\max_{k} \Vert H_k
\Vert_2 % max_k || H_k ||_2\). It
is a lower bound for the real \(\infty\)
norm.'ABS': maximum
pointwise data \(\max_{k,i,j}
|H_{k}(i,j)| % max_k,i,j | H_k(i,j)
|\).freq_band (optional):
the frequency band of interest, default
is [0,inf].and the outputs is:
N: is the value of the
norm.Note that the frequency \(\omega\) is not required by several of these norms which can thus be used on data not associated with axis data.
% Test model
H = tf(1, [1/100, 0.2/10, 1]);
w = logspace(-2, 2, 200);
h = freqresp(H, w);
% Comparison of 2 and inf norms
[norm(H, 2), mdspack.fdnorm(h, w, 'L2')]
[norm(H, inf, 1e-8), mdspack.fdnorm(h, w, 'LINF')]Interface that estimates the LTI dynamical model stability from frequency-domain data. It is used as follows,
[stab, Hr] = mdspack.fdstabest(w, H)where the inputs are
w: a real vector
containing the associated
frequencies.H: a complex \(n_y \times n_u
\times n_\omega\) matrix
containing the response of the
system.And the outputs are
stab: indicator of
whether the data have been generated by
a stable system.Hr: a candidate stable
linear model.Beware that this routine gives an estimate of the stability but should not be considered a formal certificate.
% Stable test model
Hs = tf(1, [1/100, 0.2/10, 1]);
% Associated frequency-domain data
w = logspace(-2,2,100);
hs = freqresp(Hs, w);
[stab, ~] = mdspack.fdstabest(w, hs);
[isstable(Hs), stab]
% Unstable test model
Hu = tf(1, [1/100, -0.2/10, 1]);
% Associated frequency-domain data
w = logspace(-2,2,100);
hu = freqresp(Hu, w);
[stab, ~] = mdspack.fdstabest(w, hu);
[isstable(Hu), stab]The algorithm implements the idea developed in [5] and evaluates the stability of frequency-domain data based on the proximity of the stable interpolant model that can be built with the Loewner algorithm and a stable rational approximation.
Set of routines for transformation and manipulation of dynamical models.
Interface that computes the additive decomposition of a MIMO LTI model into finite stable/unstable/marginally-stable and infinite parts. It is used as follows,
[Hfs, Hfu, Hfa, Hi] = mdspack.split(H, [opt])where the inputs are
H: a (descriptor)
state-space modelopt: a structure
describing the options of the method,
which may be
tola: tolerance for the
separation of marginally stable
eigenvalues. Default value is
1e-11.and the outputs are
Hfs: state-space
component containing the finite stable
eigenvalues.Hfu: state-space
component containing the finite unstable
eigenvalues.Hfa: state-space
component containing the finite
marginally stable eigenvalues.Hi: descriptor
state-space component containing the
infinite eigenvalues, including the
direct feedthrough.% Test model
s = tf('s');
H = ss(1/(s + 1) + 1/(1 + 1e-13/10 * s + 1/100 * s^2) + s^2 + 1 + 1/(s-2));
% Additive decomposition
[Hfs, Hfu, Hfa, Hi] = mdspack.split(H);Interface that computes the projection of MIMO LTI model onto some stable subspace. It is used as follows,
[Hp, info] = mdspack.sproj(H, [opt])where the inputs are
H: a (descriptor)
state-space model.opt (optional): a
structure containing the options,
space: target space for
projection: 'I' for the
\(H_\infty\)
space (default) or '2' for
the \(H_2\)
space.and the outputs are
Hp: the projected
model. Note that infinite and marginally
stable poles cannot be projected and are
kept in Hp.info: a structure
containing the informations about the
projection process,
status: integer
indicating the status of the algorithm:
0: no error.>0: number of
infinite/marginally stable poles that
could not be projected.err: the projection
error accordingly to the projection
space.% Test model containing one stable, one marginally stable and one unstable pole
s = tf('s');
H = ss(1/(s+1) + 1/s + 1/(s-1));
% Projection onto Hinf space
[Hp, info] = mdspack.sproj(H);
% Check eigenvalues of initial and projected system
eig(H.A), eig(Hp.A)
% Error induced by the projection
[norm(minreal(H - Hp), inf), info.err]The algorithm largely depends on the selected projection space:
Note that in both cases, components
that are not in \(L_2\) or
\(L_\infty\)
such as infinite or marginally stable
poles, cannot be projected and are kept
in Hp.
Interface that evaluates a parametric MIMO LTI model at a frozen parametric configuration. It is used as follows,
Hp = mdspack.usubs(Hr, p)where the input data are:
Hr: set of matrices
describing a parametric descriptor
state-space model, as generated by mdspack.ploewner.p: a real parametric
value at which Hr should be
evaluated.and the output is:
Hp: a state-space
model, describing Hr at a
p value, given as a
dss MATLAB format.See example given in mdspack.ploewner.
Interface that constructs a single
parameter MIMO LTI uncertain MATLAB
uss model. This routine
requires the MATLAB Robust Control
Toolbox. It is used as follows,
Hu = mdspack.dssu2uss(Hr, p_range)where the input data are:
Hr: set of matrices
describing a parametric descriptor
state-space model, as generated by mdspack.ploewner.p_range: a real \(1\times 2\)
parametric range (lower and upper bound)
at which Hr should be
evaluated.and the output is:
Hu: an uncertain
state-space model, given as a
uss MATLAB format.See example given in mdspack.ploewner.
Routine for signals pre-prcessing.
Interface that performs a digital filtering of data using the Savitzky-Golay algorithm. It is used as follows,
Hf = mdspack.filter_sg(H, nl, [r])where the inputs are
H: frequency response
data (complex \(n_y \times n_u
\times n_w\) matrix e.g. from
mdspack.freqresp) or vector
(complex \(1
\times n_w\)).nl: forward/backward
steps to be smoothed (integer).and the outputs are
Hf: smoothed frequency
response (same format as
H).r: ratio defining the
order d of the polynomial
fitting the data, given as
d=floor(nl*(1-r)). Default
is r = 0.9 (real scalar
between 0 and
1).By choosing r close to 1
generally smoothes a lot the data. This
is typically useful if the signal is
very noisy. You may also increase
nl to smooth even more.
When performing any identification
technique, it is often interesting to
pre-process the raw with such a filter.
It avoids overfitting.
Being given a frequency response with
random noise,
mdspack.filter_sg may be
used to smooth the data without phase
distortion.
% Test model G(s)
G = rss(100,2,3);
% Evaluation of H, the response of G(s) along '1i w'
w = linspace(.1,100,1e4);
[H,info] = freqresp(G,w);
% Add noise
Hn = H.*(1 + .1*randn(size(H)));
% Filter
Hf = mdspack.filter_sg(Hn,10,1);
% Compare Nyquist responses
figure, hold on
mdspack.nyquist(Hn,w,'.')
mdspack.nyquist(H,w,'-','LineWidth',2)

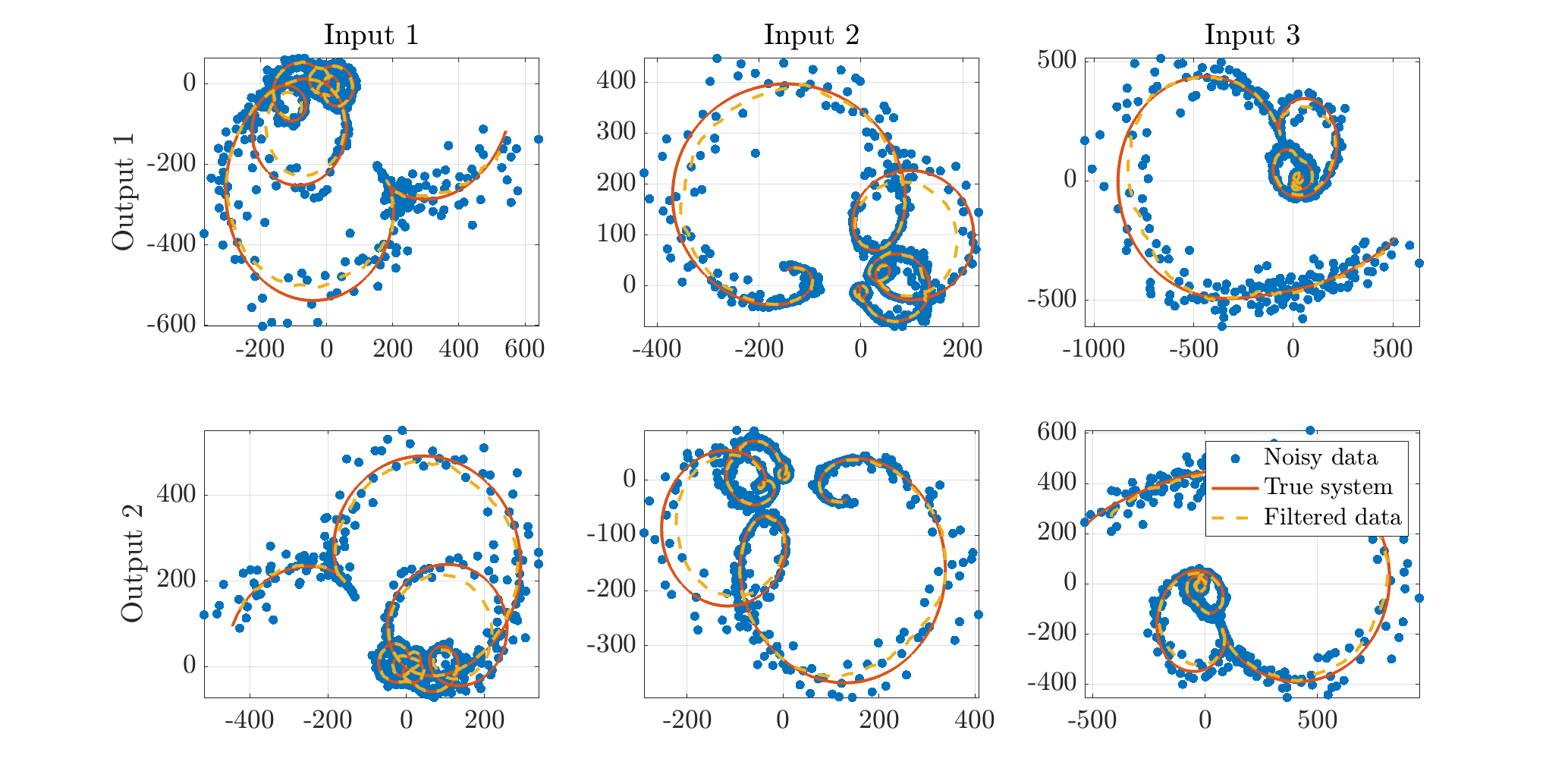

mdspack.nyquist(Hf,w,'--','LineWidth',2)The mdspack.filter_sg
implements a digital (and non-causal)
Savitzky-Golay filter. It may be applied
to a set of digital data points for the
purpose of smoothing the data, e.g. to
increase the signal-to-noise ratio
without greatly distorting the signal.
This is performed by a convolution
fitting successive sub-sets of adjacent
data points with a low-degree polynomial
(with linear least squares).
Set of routines for plotting MIMO LTI dynamical model / data responses and properties.
Plots one single MIMO LTI system Bode
gain. Works for LTI systems given is
dss, ss,
tf, handle or
freqresp forms.
mdspack.bodemag(H, w, [plotOptions])where the inputs are:
H: a LTI model given in
one of the following forms
ss, dss or
tf continuous or
sampled-time model.{A,B,C,D,E,dt}
continuous or sampled-time model of the
form (if dt<=0 or if
dt=[]) \[
\textstyle
E\dot x(t) = Ax(t) + Bu(t), y(t) = Cx(t)
+ Du(t)
\] or if dt>0,
\[
\textstyle
Ex(k+dt) = Ax(k) + Bu(k), y(k) = Cx(k) +
Du(k).
\]freqresp response
provided by mdspack.freqresp
or the MATLAB freqresp
routine.handle function, given
as H = @(s) ... (in
continuous time).structure with
the following fields
fun: a handle function
given as
H.fun = @(s) ...dt: the sampling time
H.dt being \(\leq 0\)
for continuous-time and \(>0\) in
the sampled-time case.w: the frequency
evaluation gridding points (real \(1 \times
n_w\) vector)plotOptions: same as
the MATLAB plot function
arguments% Associated frequency-domain grid
w1 = logspace(-2,2,200);
w2 = logspace(-2,2,20);
% Test model
Htf = tf(1, [1/100, 0.2/10, 1]);
Hss = ss(Htf); I = eye(length(Hss.a));
Hhan = @(s) Hss.c*((I*s-Hss.a)\Hss.b) + Hss.d;
Hfreqresp = freqresp(Htf,w2);
% mdspack Bode diagram
figure, hold on
mdspack.bodemag(Htf,w1,'-','LineWidth',2)
mdspack.bodemag(Hhan,w1,'--','LineWidth',2)
mdspack.bodemag(Hfreqresp,w2,'x', 'Color', 'b','MarkerSize', 10, 'LineWidth', 2)Same as mdspack.bodemag but plotting the Bode phase.
% Associated frequency-domain grid
w = logspace(-2,2,200);
% Test model
Hss = rss(10,1,2);
Htf = tf(Hss);
Hhan = @(s) Hss.c*( (s*eye(length(Hss.a)) - Hss.a)\Hss.b ) + Hss.d;
Hfreqresp = freqresp(Hss,w);
% mdspack Bode diagram
figure, hold on
mdspack.bodephase(Hss,w,'-','LineWidth',2)
mdspack.bodephase(Hhan,w,'--','Color',[1 .2 .2])
mdspack.bodephase(Hfreqresp,w,':','LineWidth',2)Same as mdspack.bodemag but plotting the Nyquist.
% Associated frequency-domain grid
w = logspace(-2,2,400);
% Test model
Htf = tf(1, [1/100, 0.2/10, 1]);
Hss = ss(Htf);
Hhan = @(s) 1/(s^2/100+0.2*s/10+1);
Hfreqresp = freqresp(Htf,w);
% mdspack Bode diagram
figure, hold on
mdspack.nyquist(Hss,w,'-','LineWidth',2)
mdspack.nyquist(Hhan,w,'--','Color',[1 .2 .2])
mdspack.nyquist(Hfreqresp,w,':','LineWidth',2)Same as mdspack.bodemag but plotting the Sigma-plot.
% Associated frequency-domain grid
w = logspace(-2,2,200);
% Test model
Hss = rss(10,1,2);
Htf = tf(Hss);
Hhan = @(s) Hss.c*( (s*eye(length(Hss.a)) - Hss.a)\Hss.b ) + Hss.d;
Hfreqresp = freqresp(Hss,w);
% mdspack Bode diagram
figure, hold on
mdspack.sigma(Hss,w,'-','LineWidth',2)
mdspack.sigma(Hhan,w,'--','Color',[1 .2 .2])
mdspack.sigma(Hfreqresp,w,':','LineWidth',2)The open-source softwares used by MDSPACK are listed in this section together with their licenses.
MDSPACK uses BLAS and LAPACK for some linear algebra tasks.
BLAS: from https://netlib.org/blas/, it is licensed as follows,
The reference BLAS is a freely-available software package. It is available from netlib via anonymous ftp and the World Wide Web. Thus, it can be included in commercial software packages (and has been). We only ask that proper credit be given to the authors.
Like all software, it is copyrighted. It is not trademarked, but we do ask the following:
If you modify the source for these routines we ask that you change the name of the routine and comment the changes made to the original.
We will gladly answer any questions regarding the software. If a modification is done, however, it is the responsibility of the person who modified the routine to provide support.
LAPACK: from https://netlib.org/lapack, it is licensed as follows,
Copyright (c) 1992-2013 The University of Tennessee and The University
of Tennessee Research Foundation. All rights
reserved.
Copyright (c) 2000-2013 The University of California Berkeley. All
rights reserved.
Copyright (c) 2006-2013 The University of Colorado Denver. All rights
reserved.
$COPYRIGHT$
Additional copyrights may follow
$HEADER$
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are
met:
- Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer listed
in this license in the documentation and/or other materials
provided with the distribution.
- Neither the name of the copyright holders nor the names of its
contributors may be used to endorse or promote products derived from
this software without specific prior written permission.
The copyright holders provide no reassurances that the source code
provided does not infringe any patent, copyright, or any other
intellectual property rights of third parties. The copyright holders
disclaim any liability to any recipient for claims brought against
recipient by any third party for infringement of that parties
intellectual property rights.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
MDSPACK uses FFTPACK for Fourier transforms.
MIT License
Copyright (c) 2021-2023 fftpack Contributors
Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all
copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.
The original Software this work is based on is in the Public Domain. All changes
made and to be made to the original Software are covered by the MIT License.
MDSPACK is compiled with the GNU Fortran compiler which is part of the GNU Compiler Collection (GCC). As a consequence, it depends on the following libraries:
libgcc and
libgfortran: they are
licensed licensed under the terms of the
GNU General Public
License with the GCC Runtime Library
Exception (see also the
corresponding FAQ page).libc
and associated math library
libm: they are licensed
under the terms of the GNU Lesser General Public
License.libquadmath: it is licensed
under the terms of the GNU Lesser General Public
License.These libraries are linked dynamically and may be changed at runtime provided the interfaces are compatible.
GNU LESSER GENERAL PUBLIC LICENSE
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim copies
of this license document, but changing it is not allowed.
[This is the first released version of the Lesser GPL. It also counts
as the successor of the GNU Library Public License, version 2, hence
the version number 2.1.]
Preamble
The licenses for most software are designed to take away your
freedom to share and change it. By contrast, the GNU General Public
Licenses are intended to guarantee your freedom to share and change
free software--to make sure the software is free for all its users.
This license, the Lesser General Public License, applies to some
specially designated software packages--typically libraries--of the
Free Software Foundation and other authors who decide to use it. You
can use it too, but we suggest you first think carefully about whether
this license or the ordinary General Public License is the better
strategy to use in any particular case, based on the explanations below.
When we speak of free software, we are referring to freedom of use,
not price. Our General Public Licenses are designed to make sure that
you have the freedom to distribute copies of free software (and charge
for this service if you wish); that you receive source code or can get
it if you want it; that you can change the software and use pieces of
it in new free programs; and that you are informed that you can do
these things.
To protect your rights, we need to make restrictions that forbid
distributors to deny you these rights or to ask you to surrender these
rights. These restrictions translate to certain responsibilities for
you if you distribute copies of the library or if you modify it.
For example, if you distribute copies of the library, whether gratis
or for a fee, you must give the recipients all the rights that we gave
you. You must make sure that they, too, receive or can get the source
code. If you link other code with the library, you must provide
complete object files to the recipients, so that they can relink them
with the library after making changes to the library and recompiling
it. And you must show them these terms so they know their rights.
We protect your rights with a two-step method: (1) we copyright the
library, and (2) we offer you this license, which gives you legal
permission to copy, distribute and/or modify the library.
To protect each distributor, we want to make it very clear that
there is no warranty for the free library. Also, if the library is
modified by someone else and passed on, the recipients should know
that what they have is not the original version, so that the original
author's reputation will not be affected by problems that might be
introduced by others.
Finally, software patents pose a constant threat to the existence of
any free program. We wish to make sure that a company cannot
effectively restrict the users of a free program by obtaining a
restrictive license from a patent holder. Therefore, we insist that
any patent license obtained for a version of the library must be
consistent with the full freedom of use specified in this license.
Most GNU software, including some libraries, is covered by the
ordinary GNU General Public License. This license, the GNU Lesser
General Public License, applies to certain designated libraries, and
is quite different from the ordinary General Public License. We use
this license for certain libraries in order to permit linking those
libraries into non-free programs.
When a program is linked with a library, whether statically or using
a shared library, the combination of the two is legally speaking a
combined work, a derivative of the original library. The ordinary
General Public License therefore permits such linking only if the
entire combination fits its criteria of freedom. The Lesser General
Public License permits more lax criteria for linking other code with
the library.
We call this license the "Lesser" General Public License because it
does Less to protect the user's freedom than the ordinary General
Public License. It also provides other free software developers Less
of an advantage over competing non-free programs. These disadvantages
are the reason we use the ordinary General Public License for many
libraries. However, the Lesser license provides advantages in certain
special circumstances.
For example, on rare occasions, there may be a special need to
encourage the widest possible use of a certain library, so that it becomes
a de-facto standard. To achieve this, non-free programs must be
allowed to use the library. A more frequent case is that a free
library does the same job as widely used non-free libraries. In this
case, there is little to gain by limiting the free library to free
software only, so we use the Lesser General Public License.
In other cases, permission to use a particular library in non-free
programs enables a greater number of people to use a large body of
free software. For example, permission to use the GNU C Library in
non-free programs enables many more people to use the whole GNU
operating system, as well as its variant, the GNU/Linux operating
system.
Although the Lesser General Public License is Less protective of the
users' freedom, it does ensure that the user of a program that is
linked with the Library has the freedom and the wherewithal to run
that program using a modified version of the Library.
The precise terms and conditions for copying, distribution and
modification follow. Pay close attention to the difference between a
"work based on the library" and a "work that uses the library". The
former contains code derived from the library, whereas the latter must
be combined with the library in order to run.
GNU LESSER GENERAL PUBLIC LICENSE
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License Agreement applies to any software library or other
program which contains a notice placed by the copyright holder or
other authorized party saying it may be distributed under the terms of
this Lesser General Public License (also called "this License").
Each licensee is addressed as "you".
A "library" means a collection of software functions and/or data
prepared so as to be conveniently linked with application programs
(which use some of those functions and data) to form executables.
The "Library", below, refers to any such software library or work
which has been distributed under these terms. A "work based on the
Library" means either the Library or any derivative work under
copyright law: that is to say, a work containing the Library or a
portion of it, either verbatim or with modifications and/or translated
straightforwardly into another language. (Hereinafter, translation is
included without limitation in the term "modification".)
"Source code" for a work means the preferred form of the work for
making modifications to it. For a library, complete source code means
all the source code for all modules it contains, plus any associated
interface definition files, plus the scripts used to control compilation
and installation of the library.
Activities other than copying, distribution and modification are not
covered by this License; they are outside its scope. The act of
running a program using the Library is not restricted, and output from
such a program is covered only if its contents constitute a work based
on the Library (independent of the use of the Library in a tool for
writing it). Whether that is true depends on what the Library does
and what the program that uses the Library does.
1. You may copy and distribute verbatim copies of the Library's
complete source code as you receive it, in any medium, provided that
you conspicuously and appropriately publish on each copy an
appropriate copyright notice and disclaimer of warranty; keep intact
all the notices that refer to this License and to the absence of any
warranty; and distribute a copy of this License along with the
Library.
You may charge a fee for the physical act of transferring a copy,
and you may at your option offer warranty protection in exchange for a
fee.
2. You may modify your copy or copies of the Library or any portion
of it, thus forming a work based on the Library, and copy and
distribute such modifications or work under the terms of Section 1
above, provided that you also meet all of these conditions:
a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices
stating that you changed the files and the date of any change.
c) You must cause the whole of the work to be licensed at no
charge to all third parties under the terms of this License.
d) If a facility in the modified Library refers to a function or a
table of data to be supplied by an application program that uses
the facility, other than as an argument passed when the facility
is invoked, then you must make a good faith effort to ensure that,
in the event an application does not supply such function or
table, the facility still operates, and performs whatever part of
its purpose remains meaningful.
(For example, a function in a library to compute square roots has
a purpose that is entirely well-defined independent of the
application. Therefore, Subsection 2d requires that any
application-supplied function or table used by this function must
be optional: if the application does not supply it, the square
root function must still compute square roots.)
These requirements apply to the modified work as a whole. If
identifiable sections of that work are not derived from the Library,
and can be reasonably considered independent and separate works in
themselves, then this License, and its terms, do not apply to those
sections when you distribute them as separate works. But when you
distribute the same sections as part of a whole which is a work based
on the Library, the distribution of the whole must be on the terms of
this License, whose permissions for other licensees extend to the
entire whole, and thus to each and every part regardless of who wrote
it.
Thus, it is not the intent of this section to claim rights or contest
your rights to work written entirely by you; rather, the intent is to
exercise the right to control the distribution of derivative or
collective works based on the Library.
In addition, mere aggregation of another work not based on the Library
with the Library (or with a work based on the Library) on a volume of
a storage or distribution medium does not bring the other work under
the scope of this License.
3. You may opt to apply the terms of the ordinary GNU General Public
License instead of this License to a given copy of the Library. To do
this, you must alter all the notices that refer to this License, so
that they refer to the ordinary GNU General Public License, version 2,
instead of to this License. (If a newer version than version 2 of the
ordinary GNU General Public License has appeared, then you can specify
that version instead if you wish.) Do not make any other change in
these notices.
Once this change is made in a given copy, it is irreversible for
that copy, so the ordinary GNU General Public License applies to all
subsequent copies and derivative works made from that copy.
This option is useful when you wish to copy part of the code of
the Library into a program that is not a library.
4. You may copy and distribute the Library (or a portion or
derivative of it, under Section 2) in object code or executable form
under the terms of Sections 1 and 2 above provided that you accompany
it with the complete corresponding machine-readable source code, which
must be distributed under the terms of Sections 1 and 2 above on a
medium customarily used for software interchange.
If distribution of object code is made by offering access to copy
from a designated place, then offering equivalent access to copy the
source code from the same place satisfies the requirement to
distribute the source code, even though third parties are not
compelled to copy the source along with the object code.
5. A program that contains no derivative of any portion of the
Library, but is designed to work with the Library by being compiled or
linked with it, is called a "work that uses the Library". Such a
work, in isolation, is not a derivative work of the Library, and
therefore falls outside the scope of this License.
However, linking a "work that uses the Library" with the Library
creates an executable that is a derivative of the Library (because it
contains portions of the Library), rather than a "work that uses the
library". The executable is therefore covered by this License.
Section 6 states terms for distribution of such executables.
When a "work that uses the Library" uses material from a header file
that is part of the Library, the object code for the work may be a
derivative work of the Library even though the source code is not.
Whether this is true is especially significant if the work can be
linked without the Library, or if the work is itself a library. The
threshold for this to be true is not precisely defined by law.
If such an object file uses only numerical parameters, data
structure layouts and accessors, and small macros and small inline
functions (ten lines or less in length), then the use of the object
file is unrestricted, regardless of whether it is legally a derivative
work. (Executables containing this object code plus portions of the
Library will still fall under Section 6.)
Otherwise, if the work is a derivative of the Library, you may
distribute the object code for the work under the terms of Section 6.
Any executables containing that work also fall under Section 6,
whether or not they are linked directly with the Library itself.
6. As an exception to the Sections above, you may also combine or
link a "work that uses the Library" with the Library to produce a
work containing portions of the Library, and distribute that work
under terms of your choice, provided that the terms permit
modification of the work for the customer's own use and reverse
engineering for debugging such modifications.
You must give prominent notice with each copy of the work that the
Library is used in it and that the Library and its use are covered by
this License. You must supply a copy of this License. If the work
during execution displays copyright notices, you must include the
copyright notice for the Library among them, as well as a reference
directing the user to the copy of this License. Also, you must do one
of these things:
a) Accompany the work with the complete corresponding
machine-readable source code for the Library including whatever
changes were used in the work (which must be distributed under
Sections 1 and 2 above); and, if the work is an executable linked
with the Library, with the complete machine-readable "work that
uses the Library", as object code and/or source code, so that the
user can modify the Library and then relink to produce a modified
executable containing the modified Library. (It is understood
that the user who changes the contents of definitions files in the
Library will not necessarily be able to recompile the application
to use the modified definitions.)
b) Use a suitable shared library mechanism for linking with the
Library. A suitable mechanism is one that (1) uses at run time a
copy of the library already present on the user's computer system,
rather than copying library functions into the executable, and (2)
will operate properly with a modified version of the library, if
the user installs one, as long as the modified version is
interface-compatible with the version that the work was made with.
c) Accompany the work with a written offer, valid for at
least three years, to give the same user the materials
specified in Subsection 6a, above, for a charge no more
than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy
from a designated place, offer equivalent access to copy the above
specified materials from the same place.
e) Verify that the user has already received a copy of these
materials or that you have already sent this user a copy.
For an executable, the required form of the "work that uses the
Library" must include any data and utility programs needed for
reproducing the executable from it. However, as a special exception,
the materials to be distributed need not include anything that is
normally distributed (in either source or binary form) with the major
components (compiler, kernel, and so on) of the operating system on
which the executable runs, unless that component itself accompanies
the executable.
It may happen that this requirement contradicts the license
restrictions of other proprietary libraries that do not normally
accompany the operating system. Such a contradiction means you cannot
use both them and the Library together in an executable that you
distribute.
7. You may place library facilities that are a work based on the
Library side-by-side in a single library together with other library
facilities not covered by this License, and distribute such a combined
library, provided that the separate distribution of the work based on
the Library and of the other library facilities is otherwise
permitted, and provided that you do these two things:
a) Accompany the combined library with a copy of the same work
based on the Library, uncombined with any other library
facilities. This must be distributed under the terms of the
Sections above.
b) Give prominent notice with the combined library of the fact
that part of it is a work based on the Library, and explaining
where to find the accompanying uncombined form of the same work.
8. You may not copy, modify, sublicense, link with, or distribute
the Library except as expressly provided under this License. Any
attempt otherwise to copy, modify, sublicense, link with, or
distribute the Library is void, and will automatically terminate your
rights under this License. However, parties who have received copies,
or rights, from you under this License will not have their licenses
terminated so long as such parties remain in full compliance.
9. You are not required to accept this License, since you have not
signed it. However, nothing else grants you permission to modify or
distribute the Library or its derivative works. These actions are
prohibited by law if you do not accept this License. Therefore, by
modifying or distributing the Library (or any work based on the
Library), you indicate your acceptance of this License to do so, and
all its terms and conditions for copying, distributing or modifying
the Library or works based on it.
10. Each time you redistribute the Library (or any work based on the
Library), the recipient automatically receives a license from the
original licensor to copy, distribute, link with or modify the Library
subject to these terms and conditions. You may not impose any further
restrictions on the recipients' exercise of the rights granted herein.
You are not responsible for enforcing compliance by third parties with
this License.
11. If, as a consequence of a court judgment or allegation of patent
infringement or for any other reason (not limited to patent issues),
conditions are imposed on you (whether by court order, agreement or
otherwise) that contradict the conditions of this License, they do not
excuse you from the conditions of this License. If you cannot
distribute so as to satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as a consequence you
may not distribute the Library at all. For example, if a patent
license would not permit royalty-free redistribution of the Library by
all those who receive copies directly or indirectly through you, then
the only way you could satisfy both it and this License would be to
refrain entirely from distribution of the Library.
If any portion of this section is held invalid or unenforceable under any
particular circumstance, the balance of the section is intended to apply,
and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any
patents or other property right claims or to contest validity of any
such claims; this section has the sole purpose of protecting the
integrity of the free software distribution system which is
implemented by public license practices. Many people have made
generous contributions to the wide range of software distributed
through that system in reliance on consistent application of that
system; it is up to the author/donor to decide if he or she is willing
to distribute software through any other system and a licensee cannot
impose that choice.
This section is intended to make thoroughly clear what is believed to
be a consequence of the rest of this License.
12. If the distribution and/or use of the Library is restricted in
certain countries either by patents or by copyrighted interfaces, the
original copyright holder who places the Library under this License may add
an explicit geographical distribution limitation excluding those countries,
so that distribution is permitted only in or among countries not thus
excluded. In such case, this License incorporates the limitation as if
written in the body of this License.
13. The Free Software Foundation may publish revised and/or new
versions of the Lesser General Public License from time to time.
Such new versions will be similar in spirit to the present version,
but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Library
specifies a version number of this License which applies to it and
"any later version", you have the option of following the terms and
conditions either of that version or of any later version published by
the Free Software Foundation. If the Library does not specify a
license version number, you may choose any version ever published by
the Free Software Foundation.
14. If you wish to incorporate parts of the Library into other free
programs whose distribution conditions are incompatible with these,
write to the author to ask for permission. For software which is
copyrighted by the Free Software Foundation, write to the Free
Software Foundation; we sometimes make exceptions for this. Our
decision will be guided by the two goals of preserving the free status
of all derivatives of our free software and of promoting the sharing
and reuse of software generally.
NO WARRANTY
15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO
WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW.
EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR
OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE
LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME
THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN
WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY
AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU
FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE
LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING
RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A
FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF
SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Libraries
If you develop a new library, and you want it to be of the greatest
possible use to the public, we recommend making it free software that
everyone can redistribute and change. You can do so by permitting
redistribution under these terms (or, alternatively, under the terms of the
ordinary General Public License).
To apply these terms, attach the following notices to the library. It is
safest to attach them to the start of each source file to most effectively
convey the exclusion of warranty; and each file should have at least the
"copyright" line and a pointer to where the full notice is found.
Copyright (C)
This library is free software; you can redistribute it and/or
modify it under the terms of the GNU Lesser General Public
License as published by the Free Software Foundation; either
version 2.1 of the License, or (at your option) any later version.
This library is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU
Lesser General Public License for more details.
You should have received a copy of the GNU Lesser General Public
License along with this library; if not, write to the Free Software
Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Also add information on how to contact you by electronic and paper mail.
You should also get your employer (if you work as a programmer) or your
school, if any, to sign a "copyright disclaimer" for the library, if
necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the
library `Frob' (a library for tweaking knobs) written by James Random Hacker.
, 1 April 1990
Ty Coon, President of Vice
That's all there is to it!
GNU GENERAL PUBLIC LICENSE
Version 3, 29 June 2007
Copyright (C) 2007 Free Software Foundation, Inc.
Copyright (C)
This program is free software: you can redistribute it and/or modify
it under the terms of the GNU General Public License as published by
the Free Software Foundation, either version 3 of the License, or
(at your option) any later version.
This program is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
GNU General Public License for more details.
You should have received a copy of the GNU General Public License
along with this program. If not, see Copyright (C)
This program comes with ABSOLUTELY NO WARRANTY; for details type `show w'.
This is free software, and you are welcome to redistribute it
under certain conditions; type `show c' for details.
The hypothetical commands `show w' and `show c' should show the appropriate
parts of the General Public License. Of course, your program's commands
might be different; for a GUI interface, you would use an "about box".
You should also get your employer (if you work as a programmer) or school,
if any, to sign a "copyright disclaimer" for the program, if necessary.
For more information on this, and how to apply and follow the GNU GPL, see
.
GCC RUNTIME LIBRARY EXCEPTION
Version 3.1, 31 March 2009
Copyright (C) 2009 Free Software Foundation, Inc.
